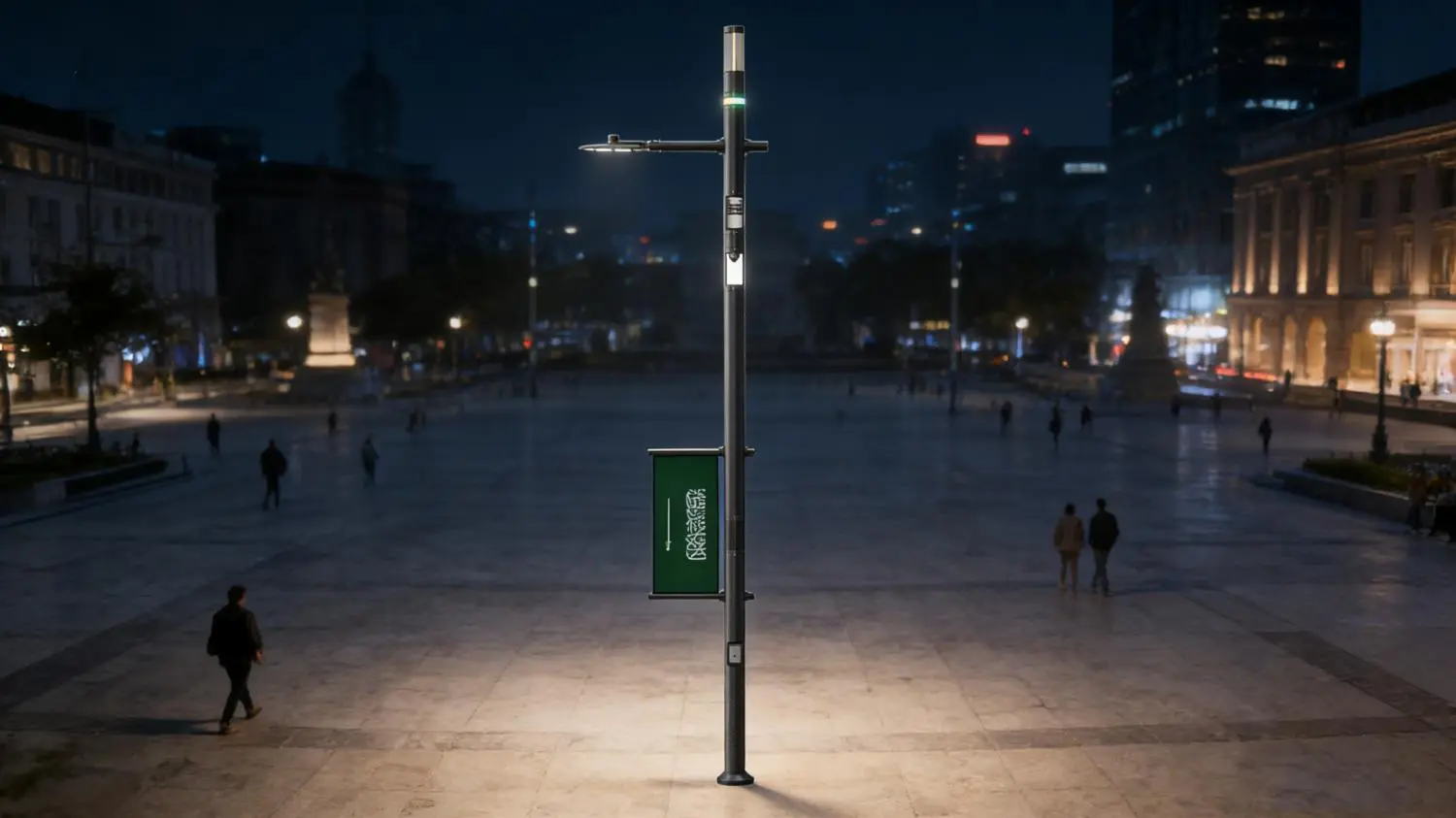

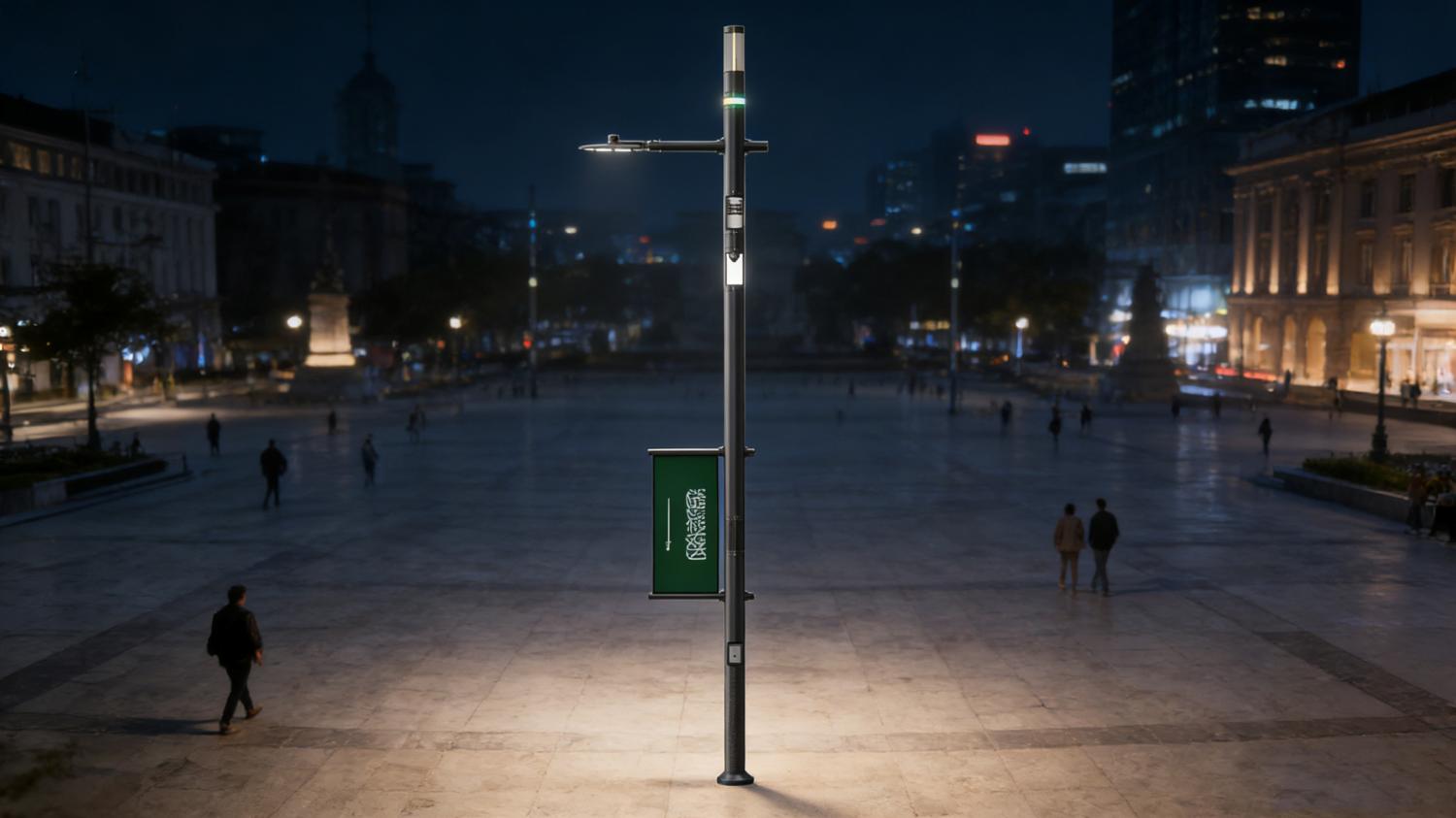

Smart Pole Light CSP01 for City square

Beyond a traditional streetlight or garden light, C-Lux CSP01 Smart Pole is an all-in-one integrated smart pole system that revolutionizes outdoor urban infrastructure. Engineered as a versatile smart city solution, it combines energy-efficient smart LED street lighting,180° smart garden light module, high-definition Light Ring for ambience ,camera for surveillance, public Wi-Fi AP access, broadcast loudspeaker, and emergency SOS intercom—all within a single, sleek pole.

Ideal for smart city projects and privately-managed outdoor spaces, this multifunctional smart pole enhances public safety, connectivity, and urban livability. Its modular design ensures easy installation and low maintenance, while its energy-saving operation reduces long-term costs. Built for durability, the CSP01 features a **corrosion-resistant coating** suitable for harsh environments like seafronts and piers, along with a banner arm for promotional advertising and information display. The precision etching process at the pole base further improves weather resistance, aesthetics, and lifespan.

C-Lux Smart pole CSP01 offers a wide range of possibilities by combining modules of function required and selected for different scenarios. Thanks to its flexibility, it brings possibilities of added function after this smart pole light has been installed.

► General:

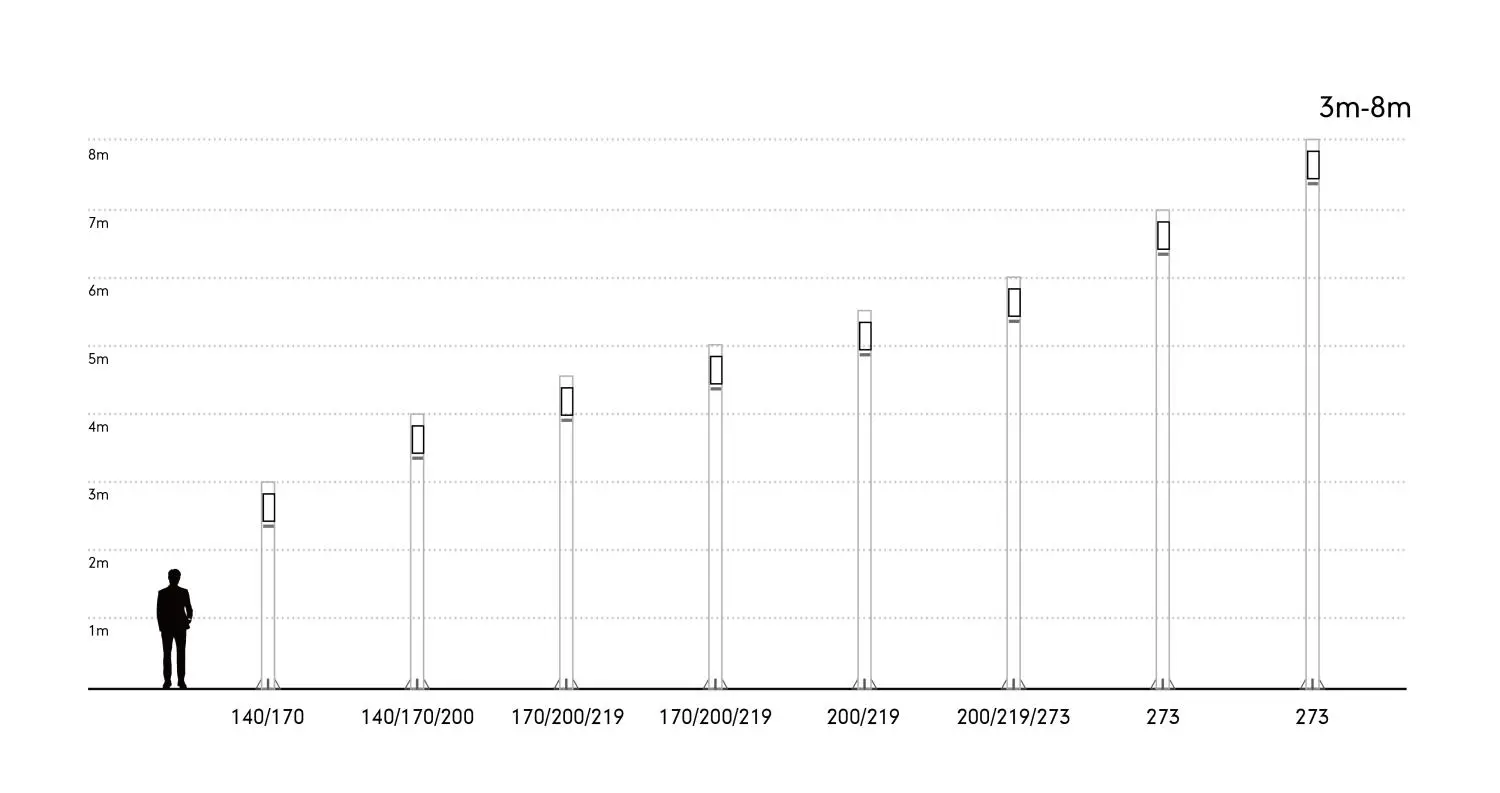

Smart Pole light will be suggested to make different heights as per different scenarios.

General

◉ Top Garden lighting Luminaries Modules

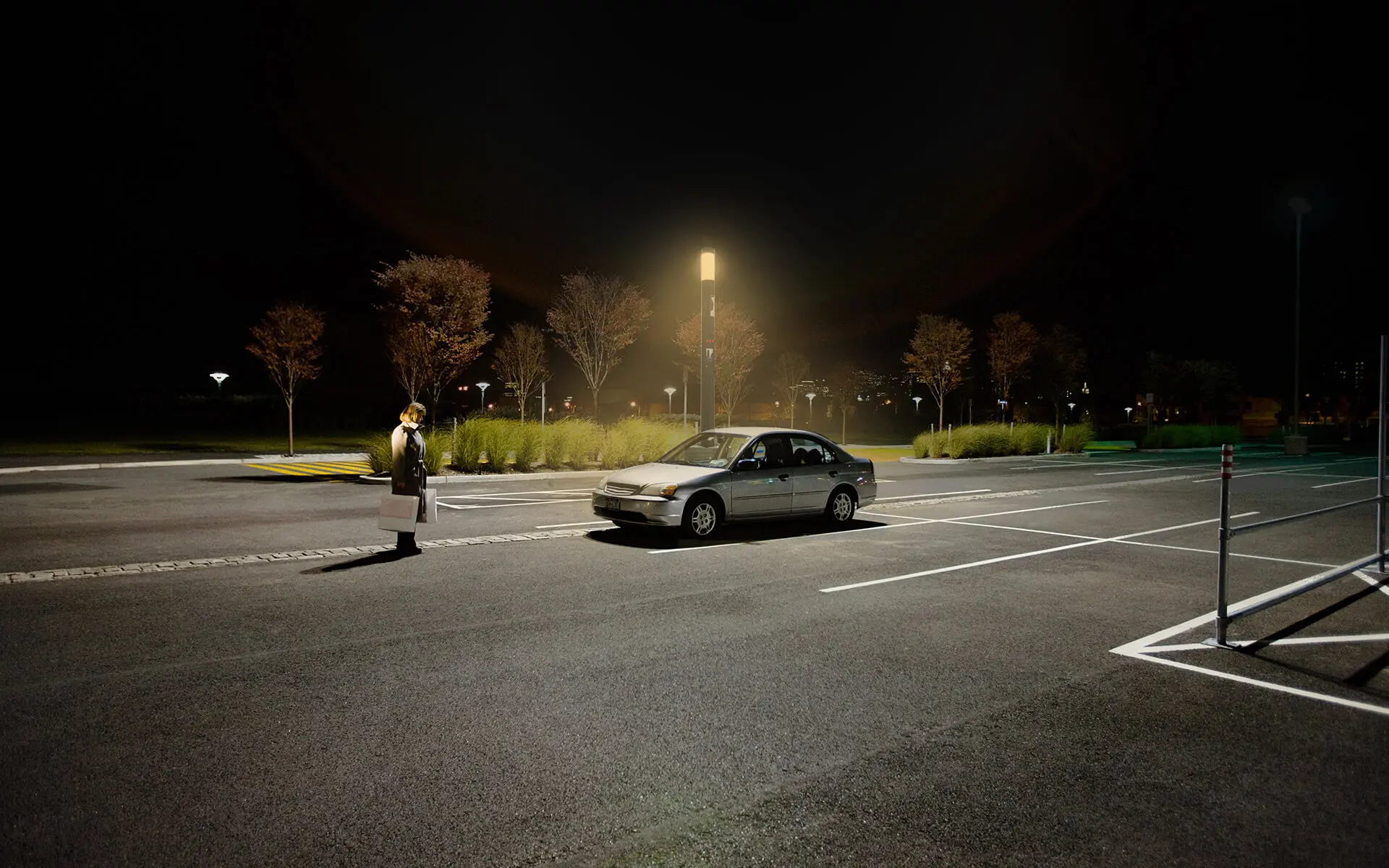

Designed with relative scenarios of garden,park, Square,car parks,or pathway,bikeway,etc, smart po CSP01 provides perfect solutions adapted to any type of urban environment or facility.Meanwhile combining with C-Lux intelligent lighting technology, This garden lighting module can be deigned to difference colors application such as white color with dimming,tuning white with CCT adjustable an dimming,RGBW Static and Dynamic changing and dimming.Constructed from high-grade materials such as powder-coated aluminum, stainless steel, and toughened glass, our lights are engineered to withstand rain, frost, UV exposure, and temperature extremes.It blends timeless aesthetics with robust engineering, ensuring your outdoor space is not only beautifully illuminated but also reliably secure, season after season.

◉ Key Feature

■ RGBW color /White /Tuning White

LED life of 50,000hrs L80/B10 @ 50C

60º beam angle

■Philips/Osram chip

■ Dimming/CCT adjustable/Static or Dynamic color change

■ smart controlling by smart pole system

■ DMX

Available with a range of smart lighting modules of night tune 2200K ~6500K , smart pole CSP01 can provide solutions adapted to any type of urban environment or facility. It can integrate a lighting to provide the perfect solution for lighting streets, pedestrian crossings, squares, parks, car parks or even building facades, monuments and statues. Through CCT adjustable,It is not only aligning with the body's natural rhythms to enhance health and a sense of security,also Enhance the functionality and ambiance of public spaces.C-Lux intelligent controlling function including dimming timing,on/off make smart pole energy-saving based on illuminating outdoor space. Meanwhile, C-Lux microwave senor with photocell application built-in of smart pole can make smart lighting module to achieve greater energy efficiency.

C-Lux smart pole CSP01 lighting are available with various lumen outputs and photometries to provide an efficient and comfortable lighting.

◉ Key Feature

■ High lighting efficiency:100lm/W+

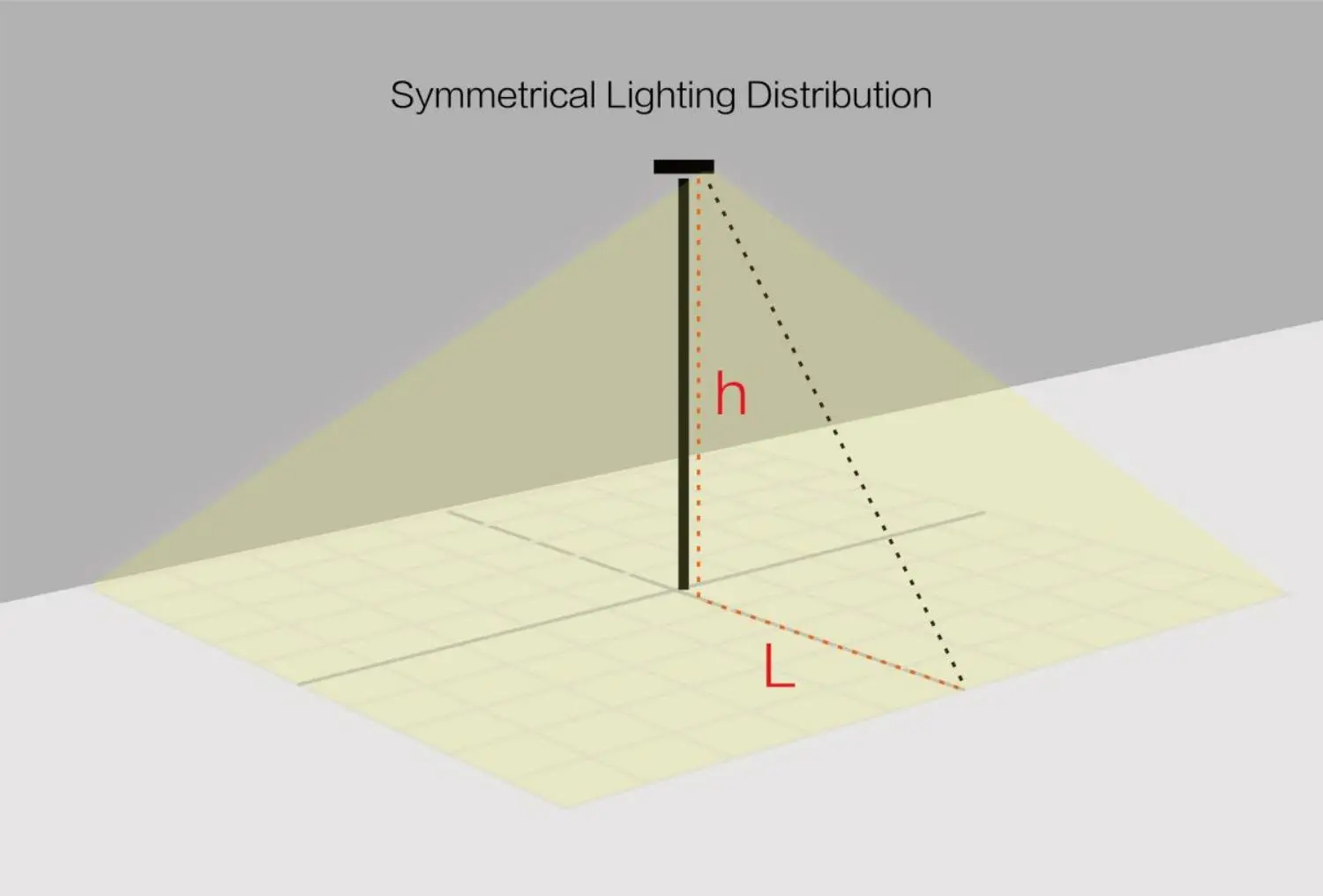

■360º /120°beam angle

■Philips/Osram chip

■ Night Tune 2200-4000K CCT adjustable

■ smart controlling by smart pole system

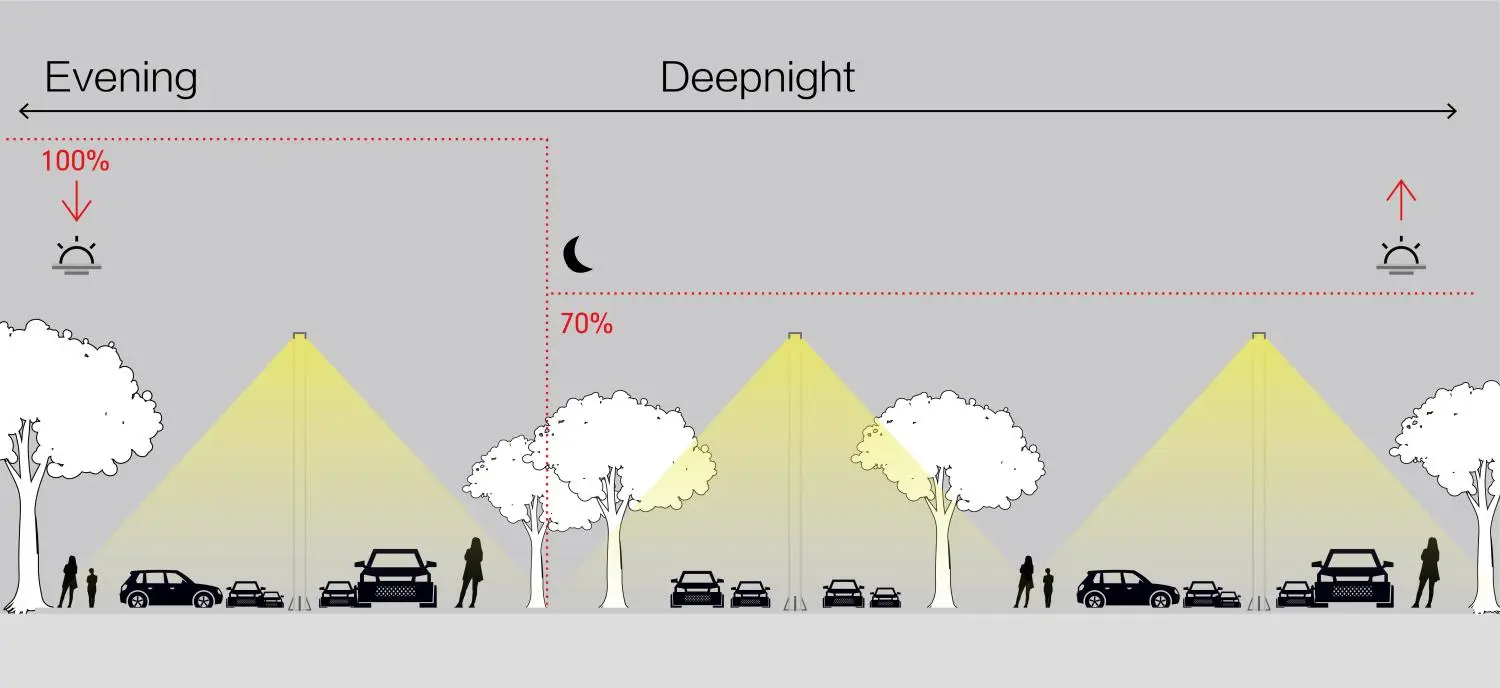

■ Microwave sensor with photocell built-in for lighting on by people or bicycle (Option)

As a carrier of smart city connectivity, smart light pole csp01 is equipped with a high performance waterproof outdoor WIFI base station. It supports 802.11AC technology, can work in the 2.4G/5.8G frequency band, to meet the needs of 250 people at the same time wireless high-speed Internet access.

◉Key Feature

■ high performance, high gain, high reception sensitivity, high bandwidth, high access count

■ Double frequency: 2.4G 802.11N 300Mbps + 5G 802.11AC 450Mbps wireless access speed

■ Outdoor class

■ Larger coverage area

The Smart Pole Light 180 LGT - Refector module enhances the different lighting options by directing light towards a specific surrounding area.The array of options and configuration are carefully designed to offer a lighting solution for any particular situation.

LED colour, power, type of optic, control options, electrical class, protector type, etc. are all standard options that provide opportunities to enhance surroundings in a playful way. All options are then connected to C-lux’s versatile, open and interoperable C-Lux smart pole lighting remote control system.

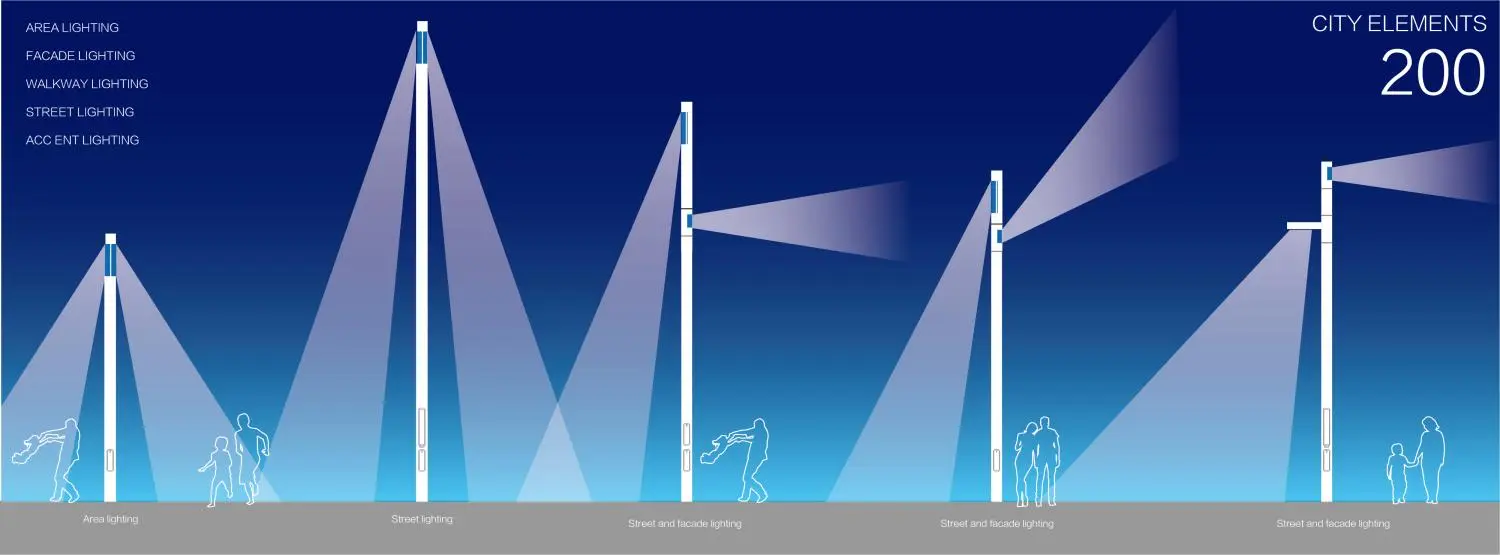

Modules are carefully designed and manufactured from high-grade, high-pressure aluminium/galvanized steel with clear or frosted protectors used to secure and protect the module from the elements. Extruded aluminium/galvanized steel is also used to achieve the cylindrical shape, with fasteners in stainless steel. The refector are in highly refective different beam for scenarios of area lighting,facade lighting,street lighting or accent lighting.The housing is finished with a high-grade polyester powder paint in a variety of colors, offering the customer endless possibilities.

◉ Key Feature

■ Seamless integration in the smart pole light column

■ Numerous lighting configurations

■ Smart control lighting through Zhaga Book18 socket

■ Easy installation with patented mounting system

■ smart controlling by smart pole system

■ Highly refective anodised aluminium refector with Asymmetric beam

■High lighting efficiency 100lm/w+

■ Neutral or warm white LEDs

By adding camera that enhance security to the smart pole CSP01 column, you can reduce crime, deter unwanted behaviour in public areas and increase the feeling of safety. It gives security operators access to existing sites, to the available power supply and to regularly maintained infrastructure. Cameras help to monitor spaces while loudspeakers can broadcast announcements. An emergency button and an intercom can also be easily integrated to help people in distress while a flashing light ring can guide emergency services to the right place.

◉Key Feature

■ Resolution:Up to 2560*1440@30fps

■ Image optimization (backlight, contrasts, night vision, high luminosity)

■ONVIF/GB28281 communication standard

■Optical zoom: 23×, digital zoom 16×

■ Event triggering: motion detection, video analytics, tampering…

■ Smart IR, IR Range: 50m

■ S+265/H.265/H.264/M-JPEG

■Intelligent monitoring

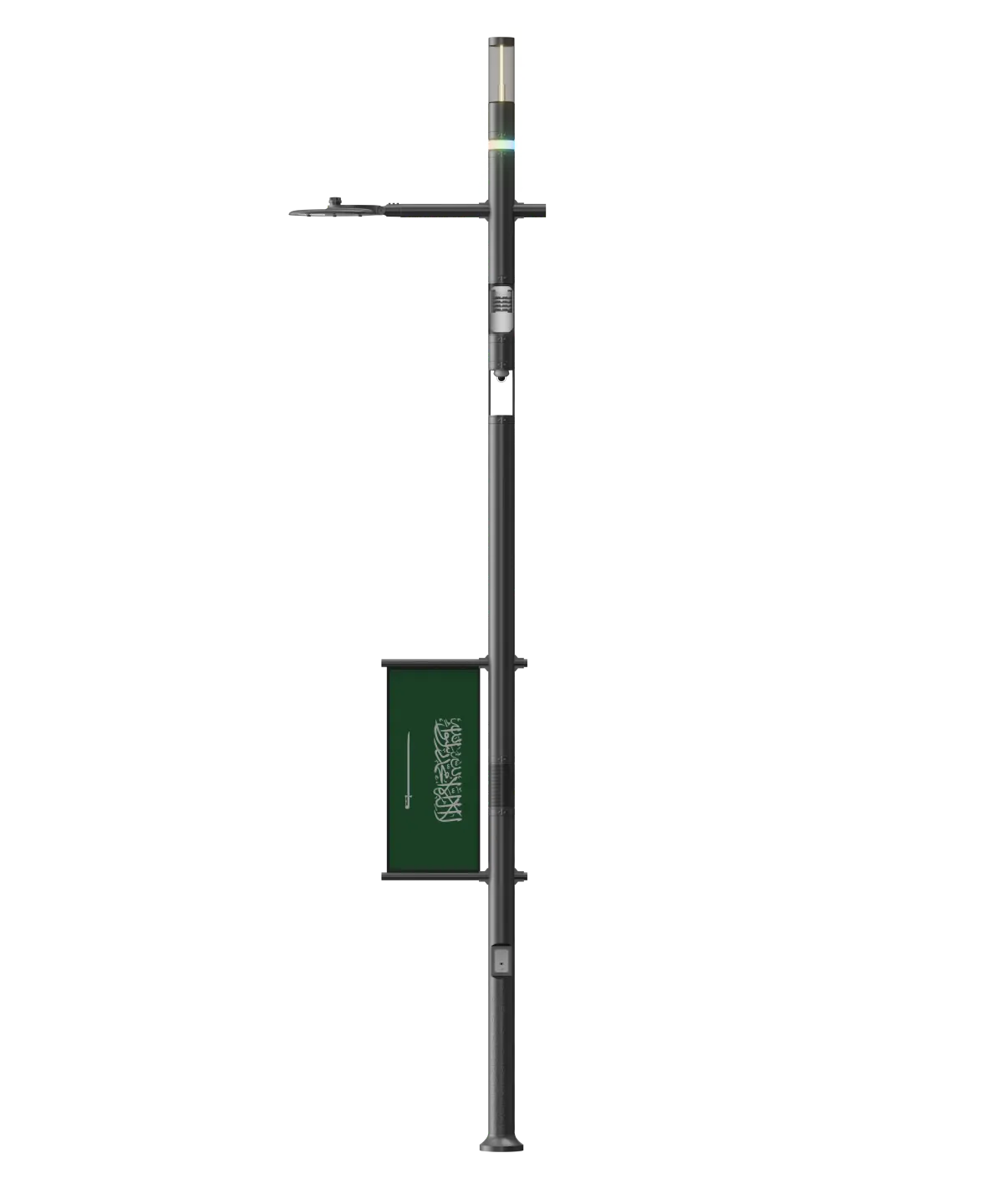

The Smart Pole Light Ring CSP01G2 module adds an interactive and decorative touch to public events and spaces, elevating their overall atmosphere. It can integrate a wide spectrum of colors to foster interaction and boost audience engagement. The RGBW Light Ring works in synergy with other modules of the CSP01G2 smart landscape lighting pole, creating a seamless connection between people and their surrounding environment.

Constructed from high-pressure die-cast aluminum, the smart pole RGBW Light Ring modules feature an opal PC protector that safeguards the LEDs and internal components effectively. All fasteners are made of stainless steel for enhanced durability and corrosion resistance. Additionally, polyester powder coating is available in a variety of colors, providing customers with endless customization possibilities to meet diverse application needs.

◉Key Feature

■ Wide range of colors

■ Signage / information

■ Can inform, warn or guide a crowd through colour

■ EV charger: free/in-use (option)

■ Intercom: emergency yes/ no (option)

■ Dynamic lighting scenarios with DMX protocol (option)

C-Lux smart pole CSP01 offers a MAX 30W integrated weatherproof public address sound system dedicated to outdoor spaces. It can be used to broadcast advertisements, public service announcements, music or a local radio station for specific events to create a convivial ambiance.

◉Key Feature

■ Seamless integration in the C-Lux smart pole system

■ Built-in installation for protection

■ Analog and digital loudspeakers available

■ Adopt Qualcomn industrial core Chip

As the main carrier of the smart city, the smart light poles are equipped with visual intercom and one-key alarm devices. It has emergency alarm button at the front side with design of a red flashing background light and mechanical alarm button . While triggering the alarm button for help,The red ring-shaped  background light flashes and alarms, deters prisoners. The emergency alarm button has obvious signs of the emergency alarm. It's  easy to make people recognize. when an emergency occurs or the need for consultation or for help, press the call button to talk to the duty officer in the monitoring center immediately, and the duty officer can know the situation what happen through camera and broadcasting,two-ways talk.The smart light poles are equipped with visual intercom and one-key alarm devices.

Front emergency alarm button with design of a red flashing background light and mechanical alarm button . While triggering the alarm button for help,The red ring-shaped  background light flashes and alarms, deters prisoners. The emergency alarm button has obvious signs of the emergency alarm. It's  easy to make people recognize. when an emergency occurs or the need for consultation or  for help, press the call button to talk to the duty officer in the monitoring center immediately, and the duty officer can knows  the  situation what happen through camera and broadcasting,two-ways talkingain carrier of the smart city, the smart light poles are equipped with visual intercom and one-key alarm devices. It has

Front emergency alarm button with design of a red flashing background light and mechanical alarm button . While triggering the alarm button for help,The red ring-shaped  background light flashes and alarms, deters prisoners. The emergency alarm button has obvious signs of the emergency alarm. It's  easy to make people recognize. when an emergency occurs or the need for consultation or  for help, press the call button to talk to the duty officer in the monitoring center immediately, and the duty officer can knows  the  situation what happen through camera and broadcasting,two-ways talkingain carrier of the smart city, the smart light poles are equipped with visual intercom and one-key alarm devices. It has

Front emergency alarm button with design of a red flashing background light and mechanical alarm button . While triggering the alarm button for help,The red ring-shaped  background light flashes and alarms, deters prisoners. The emergency alarm button has obvious signs of the emergency alarm. It's  easy to make people recognize. when an emergency occurs or the need for consultation or  for help, press the call button to talk to the duty officer in the monitoring center immediately, and the duty officer can knows  the  situation what happen through camera and broadcasting,two-ways talking

◉Key Feature

■ High-quality video and audio

■ Echo and noise cancellation

■ With separate speaker

■ linkage with Light Ring(option)

■ Good head cooling for long lifespan

C-Lux smart city smart pole loads an adva0nced smartbox(gateway).It is not only completely Integrating multiple smart devices of smart pole including CCTV cameras, LED/LCD screen display,air quality sensor(environment monitoring),charging pile, led street lighting, broadcasts, emergency call(SOS),etc already, also provide network access including wired input of fiber or Ethernet and wireless input of 4G for smart pole.

◉Key Feature

■ Complete integrating multiple devices

■ Network access

■Data intelligent collection, multiple protocol conversion, data processing and forwarding

■ Gigabit optical fiber communication

■Industrial design for harsh environment application
