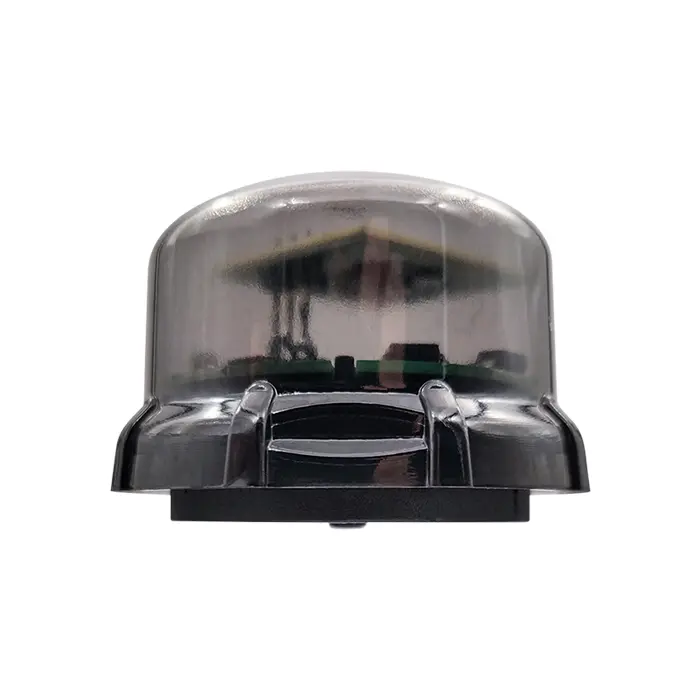

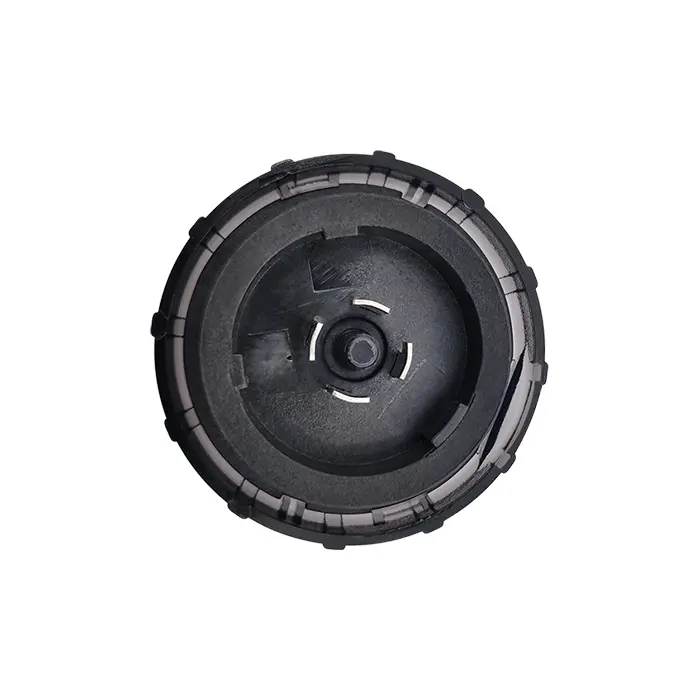

2.4G Mesh IoT Zhaga tunable whtie outdoor lighting smart controller
OVERVIEW
Updating from C-lux zhaga smart streetlight controller ,C-LUX 2.4G mesh IoT Zhaga tunable white luminaire controller is an innovative tunable white streetlight controller with a 2.4G mesh IoT network to enjoy seamless color temperature adjustment (2200K-6500K), dimming, on/off, remote control,data collection combining with C-Lux smart streetlight Central management system through stable 2.4 GHz mesh wireless control protocol, and achieve significant energy savings and intelligence for smart city smart lighting projects such as municipal road lighting, garden landscape lighting, outdoor public area lighting, etc.

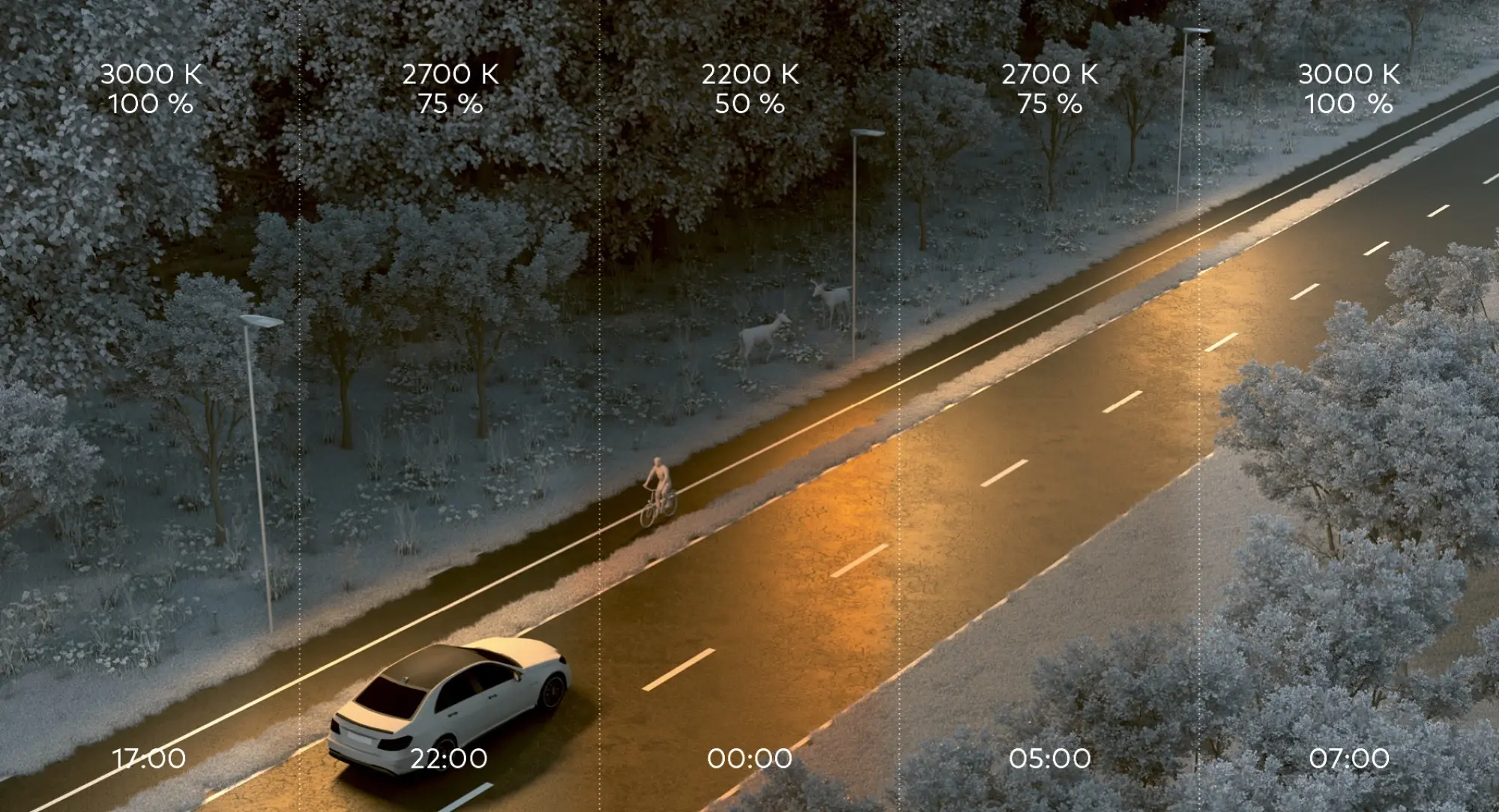

Based on advanced 2.4G mesh wireless communication and intelligent control technologies for urban smart city lighting projects, C-Lux Tunable White 2.4G mesh Zhaga Smart Streetlight Controller deliveries an innovate tunable white Technology for outdoor lighting fixtures. it can meet the lighting needs of different scenarios by adjusting the color temperature between 2200K and 6500K:Warm white (2200K-3500K) creates a comfortable and safe atmosphere for residential areas and parks, while cool white (5000K-6500K) provides high brightness and clear vision for main roads and commercial districts. This human-centric lighting design not only improves visual comfort but also helps regulate human circadian rhythms.
Functions and Characteristics
CCT adjustable(2200K~27000K)&Dimable
► Enables individual remote program managements,ON / OFF / Dimming timers of streetlight lamps with DALI 2 / DiiA / Osram DEXAL / Philips SR control gear.
► Autonomous operation based on predefined schedules, light level sensor and adaptive lighting.
► Adaptive lighting capabilities based on linkage with 2.4G mesh IoT smart microwave sensor (optional)
► Auto-commission with built-in GPS module( Option)
► Integrated light level sensor and tilt sensor( Option)
► Bandwidth efficient with minimal communication requirements.
► Secure communication based on encryption keys.
► Electrical parameters monitoring: (measured by DALI2 driver): V, W, A, Wh, PF and frequency.
► Advanced data synchronization and notification mechanism.
► Internal high precision Real time clock (RTC) with backup battery.
► External infrared interface for local configuration.
► Over The Air (OTA) firmware update.
► Alarm for repair automatically
Automatic positioning system for the lighting devices to facilitate management, control, maintenance of lighting devices better.
DEVICE STATUS AND REAL-TIME INSIGHTCONTROL____Stay connected to your network.Naviggate on a map view to check key performance indicators and device statueses.And manage them when needed
Dimming for Dynamic Lighting-----Maximise your benefits by associating sensors with grous of luminaires to trigger pre-defined lighting scenarios
Firmware ota system for new function updating.
Individual or Group control for Light Schedule____Program your lighting.Create and edit your group profiles based on endless variables(calendar days,special occasions,season,etc.)
Maintenance System_____Organise field operations through a fully intergrated maintenance system that will help you optimise your assetmanagement and maintenance
MULTI-TENANT-----Configure and manage different zonrs independently.Thanks to C-LUX RECYCLE-CTITES multi-tenant architecture,contractors,utilities or big cities are able to segregate areas.
On-Off for Light Schedule____Program your lighting.Create and edit your on-off,dimming,groupprofiles based on endless variables(calendar days,special occasions,season,etc.)
REPORTS,ALARMS AND DATA ANALYTICS______Anticipate and real time.Configure warining messages,get useful insights using the reports.Take advantage of aggregated date to make informed decisi
Timming for Dynamic Lighting schedule-----Maximise your benefits by associating sensors with grous of luminaires to trigger pre-defined lighting scenarios
Datasheet
|
2.4G Mesh IoT Tunable white Zhaga smart controller of streetlight for C-LUX Gen2 streetlight smart central management system |
|
|
Lamp Type |
LED, CF, HID with DALI 2 / DiiA / Osram DEXAL / Philips SR control gear |
|
Load Power |
Depending on the lamp control gear |
|
Additional controlled devices |
Yes, independent controlled via DALI relay |
|
Tunable white |
2200K~6500K |
|
Dimming range |
1%-100% |
|
Control interface |
0-10V(standard) DALI 2/ D4i (option) (IEC 62386) |
|
Power supply |
DC 24V |
|
External interface |
infrared |
|
Network interface |
mesh |
|
frequencies |
2.4G |
|
Inter-node mesh communication |
Optionally available, with motion sensor or GIS add-on |
|
Average power |
0.5W/ 24V contact module 1 – Zhaga (book 18) |
|
Maximum power |
1W/ 24V contact module 1 – Zhaga (book 18) |
|
Precision Real Time Clock |
Battery operated |
|
Real-time lamp operation |
Yes |
|
Digital input |
No |
|
IP level |
IP66 |
|
Size |
80 x 49 mm |
|
Operating temperature |
-25°C to +65°C |
|
Compliant standards |
Radio Equipment Directive (RED), 2014/53/EU / Restriction of the use of certain Hazardous Substances in electrical and electronic equipment Directive (RoHS), 2011/65/EU |
defining feature

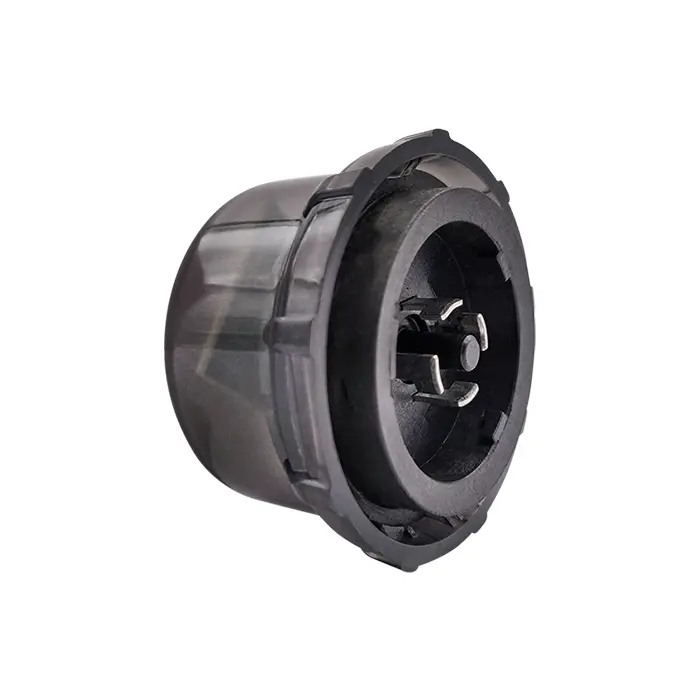

● Tunable White Zhaga Smart Streetlight Controller with 2.4G mesh IoT
Upgrade your outdoor lighting through C-Lux Tunable White Zhaga Smart Streetlight controller with IoT central management system . Enjoy seamless color temperature adjustment (2200K-6500K), stable 2.4 GHz-Mesh wireless control, plug-and-play Zhaga compatibility, and significant energy savings for smart city projects.
It can be installed for C-Lux LED street light products and is suitable for projectors for municipal road lighting, garden landscape lighting, outdoor public area lighting, etc.
● Feature and Benefits:
► Precise Tunable White Technology with color temperature adjustment(2200K~4000K/2200K~6500K)
►Stable 2.4G mesh Wireless Communication: No need complicated wiring with mesh network
►Zhaga book18 Standard Compatibility: plug-and-play installation.
►Intelligent Energy-Saving Control: Supports 0-100% smooth dimming and customized lighting schedules
► Durable & Reliable Design: IP66 waterproof and dust-proof rating, suitable for harsh outdoor environments (-40℃ to 85℃ operating temperature).
►Built-in over-voltage, over-current, and short-circuit protection for long service life (10+ years).
►Remote Monitoring : Enables real-time monitoring of lighting status, energy consumption, and fault alerts.
► OTA Updates :Supports over-the-air (OTA) firmware updates for continuous function upgrades, eliminating the need for on-site maintenance.
►Open API for Smart City Ready
